Genetic Variability for Seed Nutritional Composition in Pearl Millet Genotypes Analyzed by Biplot Method


Variabilidad genética para la composición nutricional de semillas en genotipos de mijo perla analizados por el método Biplot



Seyithan Seydosoglu1 * ; Kagan Kokten2 ; Abdullah Cil3 ; Nizamettin Turan4 .


1. Siirt University, Kayseri, Türkiye

2. Sivas University of Science and Technology, Sivas, Türkiye

3. Bati Akdeniz Agricultural Research Institute, Adana, Türkiye

4. Siirt University, Kayseri, Türkiye


*Corresponding author: Seyithan Seydosoglu, email: seyithanseydosoglu@siirt.edu.tr


Información del artículo:

Artículo original

DOI: https://doi.org/10.33975/riuq.vol35n1.1152

Recibido: 6 marzo 2023; Aceptado: 19 abril 2023


ISSN: 1794-631X e-ISSN: 2500-5782

Esta obra está bajo una licencia Creative Commons Atribución-NoComercial-SinDerivadas 4.0 Internacional.


Cómo citar: Seydosoglu, Seyithan., Kokten, Kagan., Cil, Abdullah., & Turan, Nizamettin. (2023). Genetic variability for seed nutritional composition in pearl millet genotypes analyzed by biplot method. Revista de Investigaciones Universidad del Quindío, 35(1), 220-227. https://doi.org/10.33975/riuq.vol35n1.1152



ABSTRACT


This study evaluated the chemical composition of pearl millet seeds belonging to different genotypes by biplot analysis. Seeds of 26 different pearl millet populations obtained from ICRISAT (International Crops Research Institute for the Semi-Arid Tropics) within the scope of TÜBİTAK 219O103 run by Şırnak University were used. The seeds were ground and analyzed for their chemical composition, i.e., acid detergent fiber (ADF), neutral detergent fiber (NDF), crude protein (CP), digestible dry matter (DDM) and dry matter intake (DMI) rate. The results revealed that crude protein ratio varied between 11.74-19.24%, whereas ADF ratio differed between 3.44-11.43%. Similarly, NDF ratio varied between 10.23-23.47%, while DDM ratio ranged between 79.98-86.21%. Likewise, DMI ratio differed between 5.11-11.72%. Scatter plot obtained after biplot analysis indicated three different groups based on the analyzed traits. The first group contained DDM and DMI, whereas the second group consisted of ADF and NDF. The protein ratio was in the third group. It was determined that ADF-NDF and DMI-DDM properties were negatively correlated with each other. According to biplot, genotypes ‘A5-13’, ‘A13-6’ and ‘B1-7’ were prominent for ADF -NDF, DMI-DDM, and protein ratio, respectively. Therefore, these genotypes can be used in future studies to induce the desired traits.


Keywords: Pearl millet; genotypes; biplot; chemical composition.


RESUMEN


Este estudio evaluó la composición química de semillas de mijo perla pertenecientes a diferentes genotipos mediante análisis biplot. Se utilizaron semillas de 26 poblaciones diferentes de mijo perla obtenidas de ICRISAT (Instituto Internacional de Investigación de Cultivos para los Trópicos Semiáridos) dentro del alcance de TÜBİTAK 219O103 administrado por la Universidad de Şırnak. Las semillas se molieron y analizaron en cuanto a su composición química, es decir, fibra detergente ácida (FDA), fibra detergente neutra (FDN), proteína cruda (PB), materia seca digestible (MSD) y tasa de consumo de materia seca (MSD). Los resultados revelaron que la proporción de proteína cruda varió entre 11,74 y 19,24 %, mientras que la proporción de FAD varió entre 3,44 y 11,43 %. Del mismo modo, la relación FDN varió entre 10,23-23,47%, mientras que la relación DDM osciló entre 79,98-86,21%. Asimismo, la relación DMI difirió entre 5.11-11.72%. El diagrama de dispersión obtenido después del análisis biplot indicó tres grupos diferentes según los rasgos analizados. El primer grupo contenía DDM y DMI, mientras que el segundo grupo constaba de ADF y NDF. La proporción de proteína estaba en el tercer grupo. Se determinó que las propiedades ADF-NDF y DMI-DDM estaban negativamente correlacionadas entre sí. Según el biplot, los genotipos 'A5-13', 'A13-6' y 'B1-7' fueron prominentes para la relación ADF-NDF, DMI-DDM y proteína, respectivamente. Por lo tanto, estos genotipos pueden usarse en futuros estudios para inducir los rasgos deseados.


Palabras clave: Mijo perla; genotipos; biplot; composición química.


INTRODUCTION


Pearl millet [Pennisetum glaucum (L.) R. Br.] is a well-known tropical C4 small-grained cereal crop with exceptional photosynthetic efficiency and dry matter production. It is the only cereal crop that thrives in the dry, arid, and semi-arid portions of the tropics, where other grain crops fail to grow (Sanjana Reddy et al., 2021). Pearl millet is a staple cereal crop that supplies food and fodder for >90 million people who are severely resource constrained. Cultivation of this plant is concentrated in the dry and semiarid regions of Asia and Sub-Saharan Africa. India is the largest producer of this crop in Asia, and its output exceeds that of any other nation in the region combined. It contains a higher concentration of both macro and micro nutrients than other varieties of cereals, suggesting that it may have a high nutritious value (Anuradha et al., 2017).


Millions of impoverished farmer families and their livestock rely on pearl millets for food, fuel, and stover/dry fodder. Green fodder is another common usage for pearl millet cultivars. Pearl millet and Napier grass interspecies hybrids are perennials that provide green feed throughout the year. Due to its heat tolerance and low water needs, pearl millet is an excellent feed crop for dry climates. Because of this, it is often grown in areas where the weather conditions, such as rainfall, temperature, and soil fertility, are too harsh for the cultivation of other grains (Kumar et al., 2012). Ruminants may rely heavily on pearl millet as a staple meal. Nutritionally, it doesn't provide much since it's poor in digestible calories, crude protein, and minerals. To improve the nutritional content of fodder, small farmers have not made extensive use of chemical or biological approaches. Genetic manipulation offers an alternative and potentially valuable method for enhancing the nutritional content of straw and stover (Zerbini and Thomas, 2003).


Genetic modification has the potential to significantly increase fodder quality by increasing tillering potential, leafiness, and stem sweetness. Landraces of pearl millet are a source of potentially useful genetic diversity, but they are not yet being fully exploited to increase fodder production (Jindal et al., 2009). Forage quality may be estimated by its protein, fiber, and lignin content in the dry matter, as well as its in vitro and in vivo dry matter digestibility (Ouendeba et al., 1996; Jindal et al., 2009).


For the development of high-yielding fodder types, knowledge of variability and character connection between different attribution factors is essential (Nguyen et al., 2019). Pearl millet has a high level of genetic variation, especially for yield components, adaptability, and quality. Taking use of this variation might lead to the development of hybrids and cultivars with very high feed production rates (Bikash et al., 2013). This research aimed to assess the variation in fodder production and related traits among pearl millet inbred lines.


MATERIALS AND METHODS


The IP numbers of pearl millet genotypes obtained from ICRISAT (International Crops Research Institute for the Semi-Arid Tropics) within the scope of TUBITAK 219O103 project carried out by Şırnak University are given in Table 1.


Table1. The IP numbers of pearl millet genotypes used in the current study.

Populations

IP No

Populations

IP No

A1-4 PG 2020 Şanlıurfa

869

A13-6 PG 2020 Şanlıurfa

18545

A1-16 PG 2020 Şanlıurfa

2246

A15-12 PG 2020 Şanlıurfa

22269

A5-13 PG 2020 Şanlıurfa

7978

A15-16 PG 2020 Şanlıurfa

17862

A5-14 PG 2020 Şanlıurfa

8022

B1-7 PG 2020 Şanlıurfa

1098

A6-5 PG 2020 Şanlıurfa

8276

B4-7 PG 2020 Şanlıurfa

6113

A6-14 PG 2020 Şanlıurfa

8707

B4-9 PG 2020 Şanlıurfa

6275

A7-8 PG 2020 Şanlıurfa

9492

B4-10 PG 2020 Şanlıurfa

6278

A8-2 PG 2020 Şanlıurfa

10151

B7-12 PG 2020 Şanlıurfa

9645

A9-10 PG 2020 Şanlıurfa

11799

B12-16 PG 2020 Şanlıurfa

17465

A9-11 PG 2020 Şanlıurfa

11811

B14-3 PG 2020 Şanlıurfa

19722

A10-8 PG 2020 Şanlıurfa

12669

B14-4 PG 2020 Şanlıurfa

19816

A10-13 PG 2020 Şanlıurfa

13261

B15-7 PG 2020 Şanlıurfa

21244

A12-12 PG 2020 Şanlıurfa

16540

B15-8 PG 2020 Şanlıurfa

21283


Seeds of the pearl millet genotypes were ground in a mill and passed through 1 mm for chemical analysis. Crude protein analyzes were performed by the methods specified in AOAC (1990). The ADF and NDF constituting the cell wall were performed by the method specified in Van Soest (1963) and Van Soest and Wine (1967), respectively. Digestible dry matter (DDM) and dry matter intake (DMI) ratios were also calculated. The following formulas were used for the calculations (Morrison, 2003).


DDM = 88.9 - (0.779 x ADF)

DMI = 120 / NDF


Correlation and GI-biplot analyses were used to analyze five nutritional composition traits [i.e., acid detergent fiber (ADF), neutral detergent fiber (NDF), crude protein (CP), digestible dry matter (DDM) and dry matter intake (DMI)] from the seeds of 26 pearl millet genotypes (Yan and Kang, 2003; Yan, 2014). Three different GI-biplot graphs were created to visually interpret the relationships between the analyzed traits. All statistical analyses were made in the GGE-biplot program (Yan, 2014).


The JMP-Pro13 statistical tool was used to evaluate the data gathered during the study. Differences among treatments means were categorized using Tukey's post-hoc test. The associations between genotypes and characteristics were analyzed using the Genstat-12th statistical software (VSN International, 2011), and the models were evaluated according to the procedures described by Yan and Tinker (2006).


RESULTS AND DISCUSSION


Crude protein, ADF, NDF, DDM and DMI ratios evaluated in the seeds of several pearl millet genotypes were shown to be statistically significant at the 99% probability level (Table 2).


Crude protein ratios of the seeds belonging to pearl millet genotypes varied between 11.74-19.24%. Crude protein ratios varied greatly across genotypes, with ‘B1-7’ yielding the highest and ‘A8-2’ yielding the lowest values for crude protein. The results of the current study agree with the findings of Sawaya et al. (1984), Osman (2011), Dias-Martins et al. (2018) and Tomar et al. (2021). However, the crude protein ratio values obtained in the current study are higher than the values reported by Obizoba and Atii (1994), Nambiar et al. (2011), Kiprotich et al. (2015), Malik (2015), Obadina et al. (2016) and Marmouzi et al. (2018). Different genotypes may account for this variation. The availability of crude proteins is dependent on anti-quality factors such as proanthocyanins (Broderick, 1995).


The ADF and NDF ratios of seeds belonging to pearl millet genotypes varied between 3.44-11.43% and 10.23-23.47%, respectively. The highest ADF ratio was obtained from the genotype ‘A8-2’, while ‘A1-4’ and ‘A13-6’ genotypes resulted in the lowest ADF ratio, which were in the same group statistically. Our findings regarding the ADF ratio obtained from the experiment are in accordance with the results reported by Marmouzi et al. (2018) from Morocco. The highest NDF ratio was obtained from the genotypes ‘A5-13’, ‘A8-2’ and ‘B12-16’, while the lowest was obtained from the genotype ‘A13-6’. Our findings regarding the NDF ratio are similar to those reported by Marmouzi et al. (2018).


The DDM ratios of pearl millet genotypes varied between 79.98-86.21%. The highest DDM rate was noted for the genotyped ‘A13-6’ and ‘A1-4’, while the genotype ‘A8-2’ resulted in the lowest value in this regard. The DMI rate varied between 5.11-11.72%. The highest DMI rate was recorded for the genotype ‘A13-6’, whereas genotypes ‘A5-13’, ‘A8-2’ and ‘B12-16’, resulted in the lowest values of DMI.


Table 2. The ADF, NDF, crude protein, DDM and DMI values for different pearl millet genotypes included in the study.

Genotype / Variety

Crude protein

ADF

NDF

DDM

DMI

A10-13

14.94 l

6.02 jk

15.28 h-k

84.20 de

7.85 efg

A10-8

14.76 m

6.84 fg

15.43 hıj

83.56 hı

7.77 fgh

A1-16

16.67 f

6.23 ıj

15.12 ı-l

84.04 ef

7.93 efg

A12-12

16.21 gh

7.21 ef

20.10 bc

83.27 ıj

5.96 no

A13-6

16.25 g

3.44 n

10.23 n

86.21 a

11.72 a

A1-4

18.23 b

3.64 n

12.05 m

86.06 a

9.95 b

A15-12

15.23 k

6.46 ghı

17.44 efg

83.86 fgh

6.88 ıjk

A15-16

16.95 de

8.05 d

18.81 d

82.62 k

6.37 lmn

A5-13

13.64 q

9.85 b

23.47 a

81.22 m

5.11 p

A5-14

16.85 e

7.32 e

20.40 b

83.19 j

5.88 o

A6-14

16.05 hı

6.51 ghı

15.14 ı-l

83.82 fgh

7.92 efg

A6-5

15.03 l

5.86 jk

14.97 ı-l

84.32 de

8.01 d-g

A7-8

15.65 j

5.91 jk

16.33 gh

84.29 de

7.35 hı

A8-2

11.74 r

11.43 a

23.43 a

79.98 n

5.12 p

A9-10

13.74 pq

6.54 ghı

14.41 jkl

83.79 fgh

8.32 de

A9-11

15.63 j

6.47 ghı

15.75 hı

83.85 fgh

7.61 fgh

B12-16

16.04 hı

9.64 b

23.23 a

81.39 m

5.16 p

B14-13

14.47 n

4.37 m

14.83 ı-l

85.49 b

8.08 def

B14-4

14.98 l

5.36 l

14.14 l

84.72 c

8.48 d

B15-7

14.14 o

9.04 c

19.22 cd

81.85 l

6.24 mno

B15-8

15.32 k

6.75 gh

18.28 de

83.63 gh

6.56 klm

B1-7

19.24 a

5.78 k

15.80 hı

84.39 d

7.59 gh

B4-10

17.04 cd

7.26 e

17.54 ef

83.24 j

6.84 jkl

B4-7

13.85 p

5.64 kl

13.02 m

84.50 cd

9.22 c

B4-9

17.13 c

6.45 hı

16.97 fg

83.87 fg

7.07 ıj

B7-12

15.96 ı

6.66 gh

14.26 kl

83.70 gh

8.42 d

Ort.

15.61

6.72

16.76

83.66

7.44

CV (%)

0.38

1.78

2.08

0.10

1.88


Differences among genotypes were statistically significant at the 99% probability level where means are followed by different letters. Means followed by the same letters are statistically non-significant.

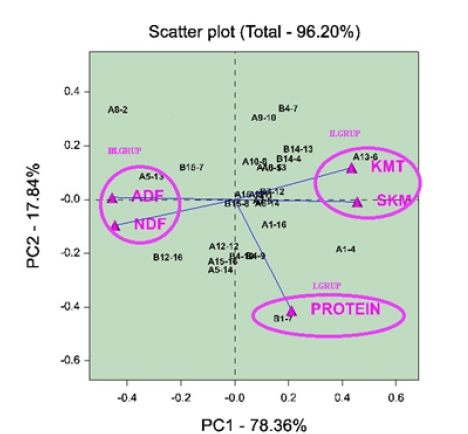

Interpretation of the relationship between genotype and studied traits through Scatter Biplot and Comparison Biplot Models



Research using GGE Biplot analysis yields a scatter plot graph that reveals how the researched parameters and genotypes are related in different ways depending on the angle between the vectors. The distance and closeness of the angle between two genotypes or characteristics affects the nature of their interactions.


According to the findings of Yan and Kang (2003), a positive and significant relationship was reported if the angle between the vectors representing the features in the graph obtained from the Biplot analysis was less than ninety degrees, and a negative and insignificant relationship was reported if the angle was greater than ninety degrees. Notable results were found for the ‘A5-13’ genotype regarding ADF and NDF, ‘A13-6’ genotype for DDM and DMI, and ‘B1-7’ genotype for protein ratio. There is a strong correlation between these characteristics given that the angle between the ADF and NDF and DDM and DMI is less than 90 degrees. The protein ratio has a broad angle, which suggests it is unrelated to other variables. It has also been shown that the characteristics under investigation may be divided into three categories. The protein ratio was in the first group, DDM and DMI in the second group, and ADF and NDF were in the third group. However, groups comprising of ADF and NDF, and DDM and DMI were inversely related, which indicates that these traits have a negative relationship with each other (Basbag et al., 2020).


There is a positive and significant correlation between the traits in the same group. Basbag et al. (2018), on the other hand, found that protein ratio had a positive and significant relationship with DDM and DMI values.

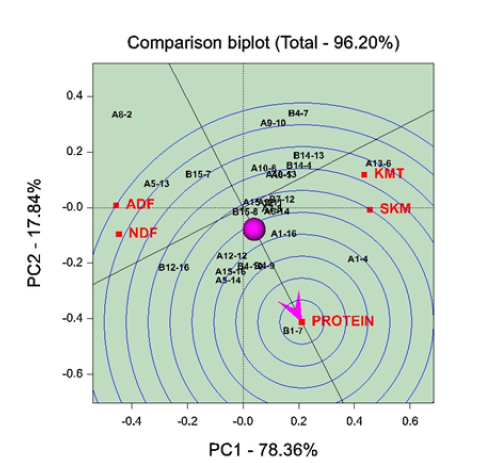

The core of a perfect testing environment is shown in Figure 2. So, the optimal test environment would be the most unique, whereas the ideal target environment would be the most prominent genotype in terms of the traits being evaluated. According to the comparison biplot graph, ‘B1-7’ genotype is closest to the center, which indicates the ideal location. For this reason, ‘B1-7’ genotype is the closest and ideal environment for the origin of the concentric circles for the protein ratio. The high rate of PC1 in the ideal test environment indicates that the genotypic effect is high and therefore important in categorizing the genotypes. The PC2 refers to general environments. In this graph, the ideal environment is the center, and the circles are located concentrically (Yan et al., 2000). Yan and Kang (2003) interpreted the ideal genotype as the most stable and the highest grain yield in their biplot analysis. The genotype ‘A8-2’ was located in the farthest position for examined traits in the current study. The genotype ‘A5-13’ was prominent for ADF and NDF, whereas ‘A13-6’ was significant for DDM and DMI. The genotype ‘A8-2’ seems to be the least desirable option across all analyzed traits since it is distant from the graph's optimal center. However, the genotypes utilized in this research should be evaluated in field circumstances over the course of several years, and recommendations should be obtained after relevant investigations.


The analyses of the seed contents of the pearl millet genotypes evaluated in the research concluded that the genotypes had substantial potentials in terms of nutritional content. The ‘A13-6’ genotype proved superior for DDM and DMI, ‘A5-13’ for ADF and NDF ratio, and ‘B1-7’ for crude protein. Variety registration and animal nutrition will both benefit greatly from the incorporation of these genotypes into breeding programs for the studied traits. However, before these genotypes are included into breeding programs, the performance difference between standard varieties in terms of various attributes must be tested, and the genotypes with better traits must be taken into yield trials over several years.


Conflict of interest: The authors declares the non-existence of conflicts of interest.


Contribution by author: The authors are responsible for all components of this work.


Funding or funds: No financial support was provided.


REFERENCES


Anuradha, N., Satyavathi, C. T., Meena, M. C., Sankar, S. M., Bharadwaj, C., Bhat, J., ... & Singh, S. P. (2017). Evaluation of pearl millet [Pennisetum glaucum (L.) R. Br.] for grain iron and zinc content in different agro climatic zones of India. Indian Journal of Genetics and Plant Breeding, 77(1), 65-73.

AOAC (1990). Official method of analysis. Association of official analytical chemists 15th. edition, pp.66-88.

Başbağ M, Çaçan E, Sayar M.S. (2018). Determining Forage Quality Properties Of Alfalfa (Medicago sativa L.) Collected From Natural Areas Of The Southeastern Anatolia Region And Assessment With Biplot Analysis. Journal of Field Crops Central Research Institute 27(2): 92-101.

Başbağ, M., Çaçan, E., Sayar, M. S., Fırat, M. (2020). Güneydoğu Anadolu bölgesi doğal alanlarından toplanan yoncaların (Medicago sativa L.) ot kalite özelliklerinin belirlenmesi ve biplot analiz yöntemi ile değerlendirmesi. Euroasia Journal of Mathematics, Engineering, Natural & Medical Sciences, 7(11), 7-16.

Bikash, A., Yadav, I. S., & Arya, R. K. (2013). Studies on variability, correlation and path analysis in pearl millet. Forage Res, 39(3), 134-139.

Broderick G.A. (1995) Desirable characteristics of forage legumes for improving protein utilization in ruminants. Journal of Animal Science, 73, 2760–2773.

Dias-Martins, A.M., Pessanha, K.L.F., Pachca, S., Rodrigues, J.A.S., Carvalho, C.W.P. (2018). Potential use of pearl millet (Pennisetum glaucum (L.) R. Br.) in Brazil: Food security, processing, health benefits and nutritional products. Food Research International, 109: 175-186.

Jindal, Y., Yadav, R., Pahuja, S. K., Malik, V. (2009). In: Forage symposium on “Emerging trends in Forage research and livestock production. Feb.16-17, 2009 at CAZRI, RRS, Jaisalmer. P74-78.

Kiprotich, F., Kimurto, P., Ombui, P., Towett, B., Jeptanui, L., Henry, O., Lagat, N. (2015). Multivariate analysis of nutritional diversity of selected macro and micro nutrients in pearl millet (Pennisetum glaucum) varieties. African Journal of Food Science, 9(3): 103-112.

Kumar, A., Arya, R. K., Kumar, S., Kumar, D., Kumar, S., & Panchta, R. A. V. I. S. H. (2012). Advances in pearl millet fodder yield and quality improvement through breeding and management practices. Forage Res, 38(1), 1-14.

Malik, S. (2015). Pearl millet-nutritional value and medicinal uses! International Journal of Advance Research and Innovative Ideas in Education, 1(3): 414-418.

Marmouzi, I., Ali, K., Harhar, H., Gharby, S., Sayah, K., Madani, N.E., Cherrah, Y., Faouzi, M.E.A. (2018). Functional composition, antibacterial and antioxidative properties of oil and phenolics from Moroccan Pennisetum glaucum seeds. Journal of the Saudi Society of Agricultural Sciences, (17): 229-234.

Morrison, J.A. (2003). Hay and Pasture Management, Chapter 8. Extension Educator, Crop Systems Rockford Extension Center.

Nambiar, V.S., Dhaduk, J.J., Sareen, N., Shahu, T., Desai, R. (2011). Potential functional implications of pearl millet (Pennisetum glaucum) in health and disease. Journal of Applied Pharmaceutical Science, 1(10): 62-67.

Nguyen, N. V., Arya, R. K., & Panchta, R. (2019). Studies on genetic parameters, correlation and path coefficient analysis in cowpea. Range Management and Agroforestry, 40(1), 49-58.

Obadina, A.O., Ishola, I.O., Adekoya, I.O., Soares, A.G., de Carvalho, C.W.P., Barboza, H. T. (2016). Nutritional and physico-chemical properties of flour from native and roasted whole grain pearl millet (Pennisetum glaucum [L.] R. Br.). J. Cereal Sci. 70, 247-252. https://doi.org/10.1016/j.jcs.2016.06.005.

Obizoba, I.C., Atii, J.V. (1994). Evaluation of the effect of processing techniques on the nutrient and anti-nutrient contents of pearl millet (Pennisetum glaucum) seeds. Plant Foods for Human Nutrition, 45: 23-34.

Osman, M.A. (2011). Effect of traditional fermentation process on the nutrient and antinutrient contents of pearl millet during preparation of Lohoh. J. Saudi Soc. Agric. Sci. 10, 1-6. https://doi.org/10.1016/j.jssas.2010.06.001.

Ouendeba, B., Hanna, W. W., Ejeta, G., Nyquist, W. E., & Santini, J. B. (1996). Forage yield and digestibility of African pearl millet landraces in diallel with missing cross. Crop science 36(6), 1517-1520.

Sanjana Reddy, P., Satyavathi, C. T., Khandelwal, V., Patil, H. T., Gupta, P. C., Sharma, L. D., ... & Tonapi, V. A. (2021). Performance and stability of pearl millet varieties for grain yield and micronutrients in arid and semi-arid regions of India. Frontiers in Plant Science, 985.

Sawaya, W.N., Khalil, J.K., Safi, W.J. (1984). Nutritional quality of pearl millet flour and bread. Plant Foods for Human Nutrition, 34: 117-125.

Tomar, M., Bhardwaj, R., Kumar, M., Singh, S.P., Krishnan, V., Kansal, R., Verma, R., Yadav, V.K., Dahuja, A., Ahlawat, S.P., Rana, J.C., Bollinedi, H., Kumar, R.R., Goswami, S., Vinutha, T., Satyavathi, C.T., Praveen, S., Sachdev, A. (2021). Nutritional composition patterns and application of multivariate analysis to evaluate indigenous Pearl millet ((Pennisetum glaucum (L.) R. Br.) germplasm. Journal of Food Composition and Analysis, 103: 104086.

Van Soest, P.J. (1963) The use of detergents in the analysis of fibre feeds. II. A rapid method for the determination of fibre and lignin. Journal of the Association of Official Analytical Chemists. 46, 829-835.

Van Soest, P.J., Wine, R.H. (1967) The use of detergents in the analysis of fibrous feeds. IV. Determination of plant cell wall constituents. Journal of the Association of Official Analytical Chemists. 50, 50-55.

VSN International, 2011. GenStat for Windows 14th Edition. VSN International, Hemel Hempstead, UK. Web page: GenStat.co.uk.

Yan, W. (2014). Crop variety trials: Data management and analysis. John Wiley & Sons.

Yan, W., Kang, M.S. (2003). GGE Biplot Analysis: A Graphical Tool for Breeders, Geneticists, and Agronomists. CRC Press, Boca Raton, FL, pp.288.

Yan, W., Tinker, N.A. (2006). Biplot Analysis of Multi-Environment Trial Data: Principles and Applications. Canadian Journal of Plant Science 86: 623-645.

Yan, W., Hunt, L.A. Sheng, Q., Szlavnics, Z. (2000). Cultivar evaluation and mega-environment investigation based on the GGE biplot. Crop Sci. 40: 597-605.

Zerbini, E., & Thomas, D. (2003). Opportunities for improvement of nutritive value in sorghum and pearl millet residues in South Asia through genetic enhancement. Field Crops Research, 84(1-2), 3-15.
